Dafram trunnion top entry ball valve for industrial applications

Trunnion Top Entry

Trunnion top entry valves combine high pressure performance with simplified maintenance, thanks to direct access to the internal components without removing the valve from the line.

Rangeclass 150 to 2500 up to 60"
Body designTop Entry
MaterialsLTCS-CS-SS-DSS-SDSS-6Mo Cast or Forged
Seats typeSoft seated or Metal seated
EndsRF-RTJ-BW-HUB Ends
Design featuresFull - Reduced Bore
OperatorLever, Manual Gear, Actuator
Technical section view of the Dafram trunnion top entry ball valve for industrial applications

Download technical materials

Trunnion Top Entry API 6A - tech sheetTrunnion Top Entry API 6D - tech sheet
In-depth links to related products, solutions and case studies
Offshore upstream platform for oil and gas applications with control systems and industrial valves
Solution
Upstream
Industrial pipeline network in a midstream plant for flow control with industrial valves
Solution
Midstream

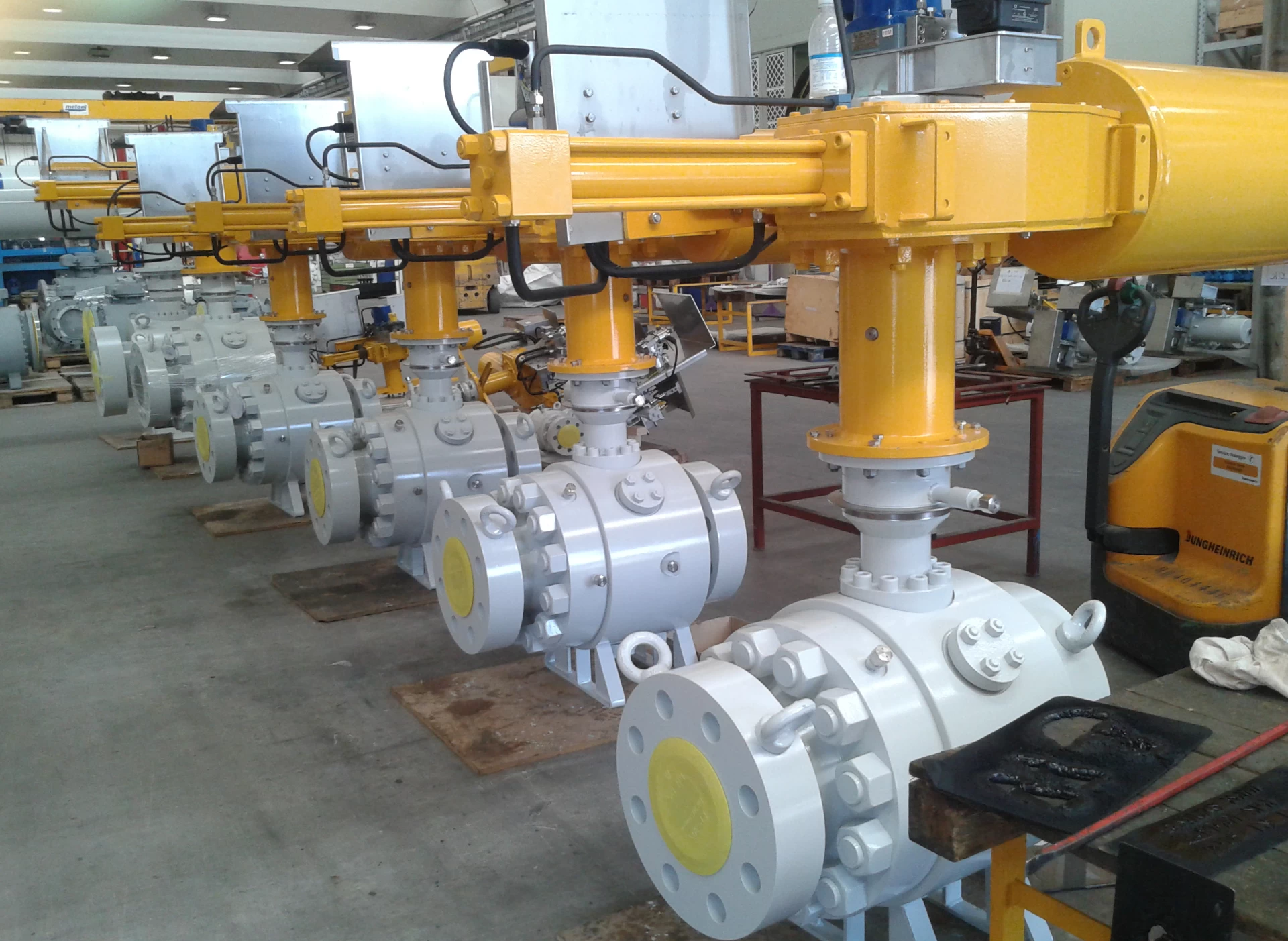

Line of automated ball valves with pneumatic actuators in the workshop for CCUS applications
